8000W P.M.P.O Powered Line Array System With 2 Wooden 18-inch Subwoofers and 6 Line Array Speakers

8000W P.M.P.O Powered Line Array System With 2 Wooden 18-inch Subwoofers and 6 Line Array Speakers

LVP-18

$899.10 USD
$999.00 USD $899.10 USD
Sale Sold out
Shipping calculated at checkout.
Buy Now, Pay Later! Pay with Klarna or Cash App Afterpay.
Free Shipping
90-Day Returns
1-Year Warranty
Secure Checkout

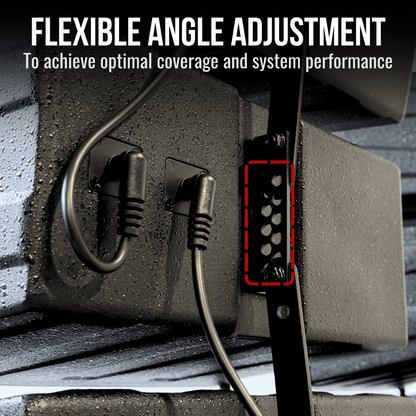

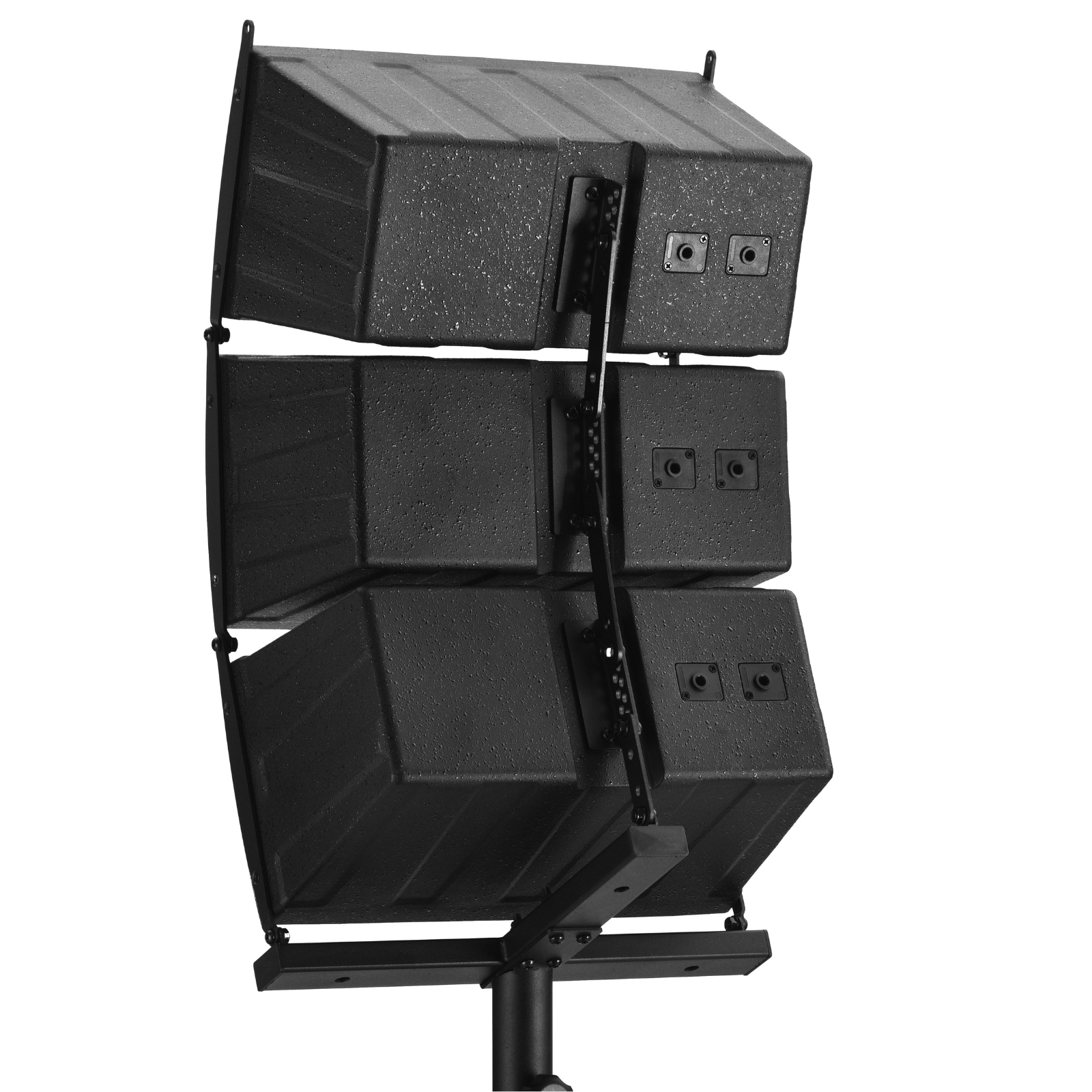

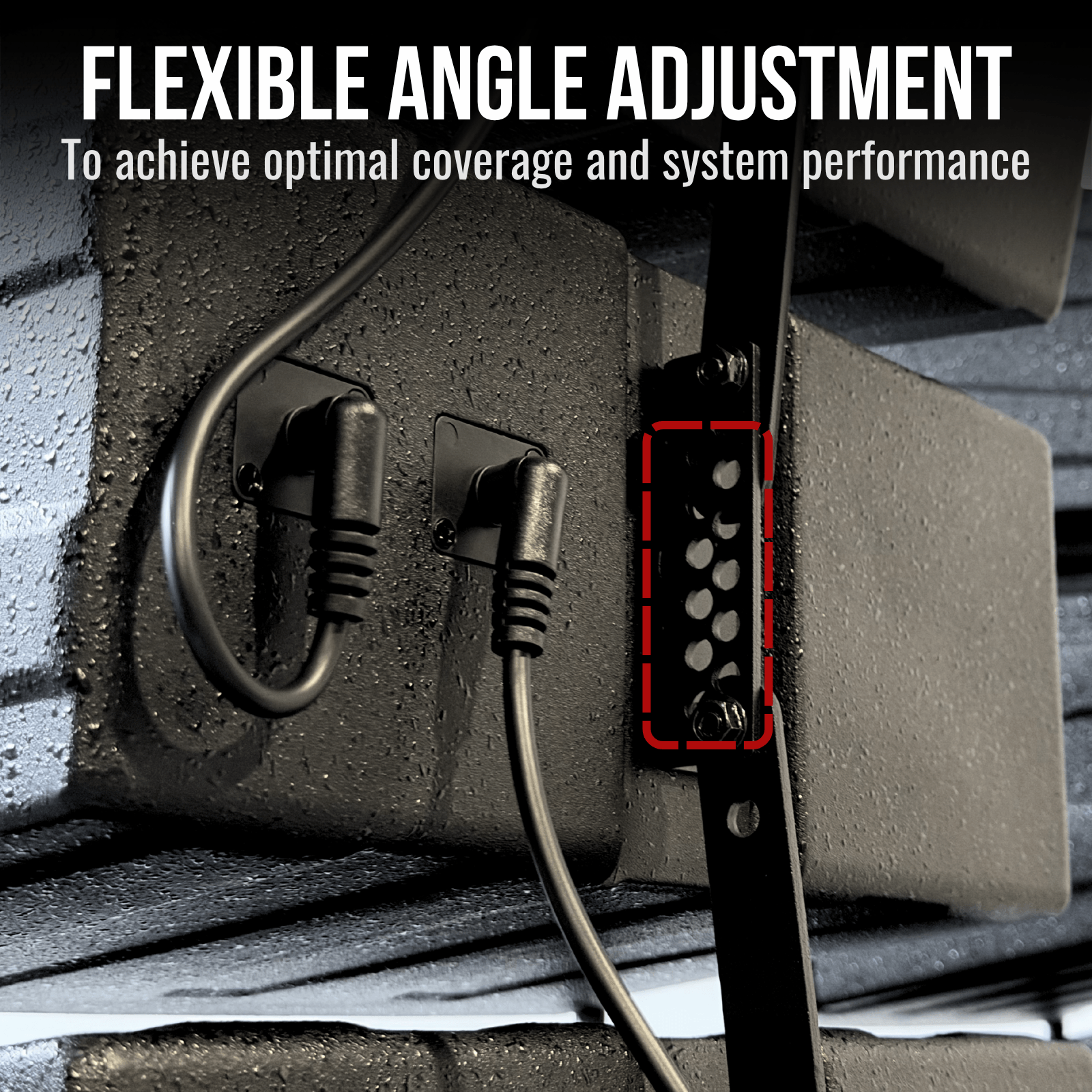

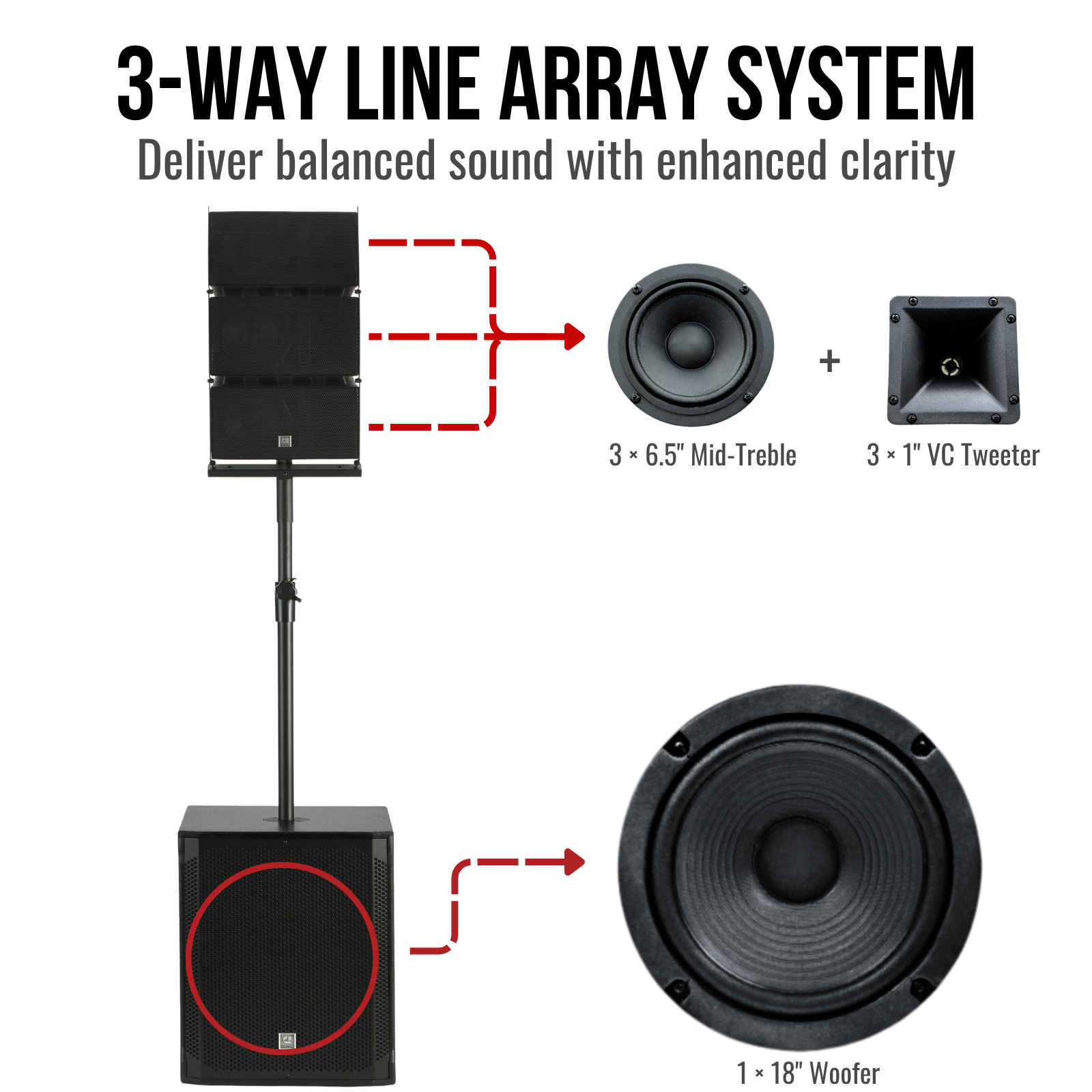

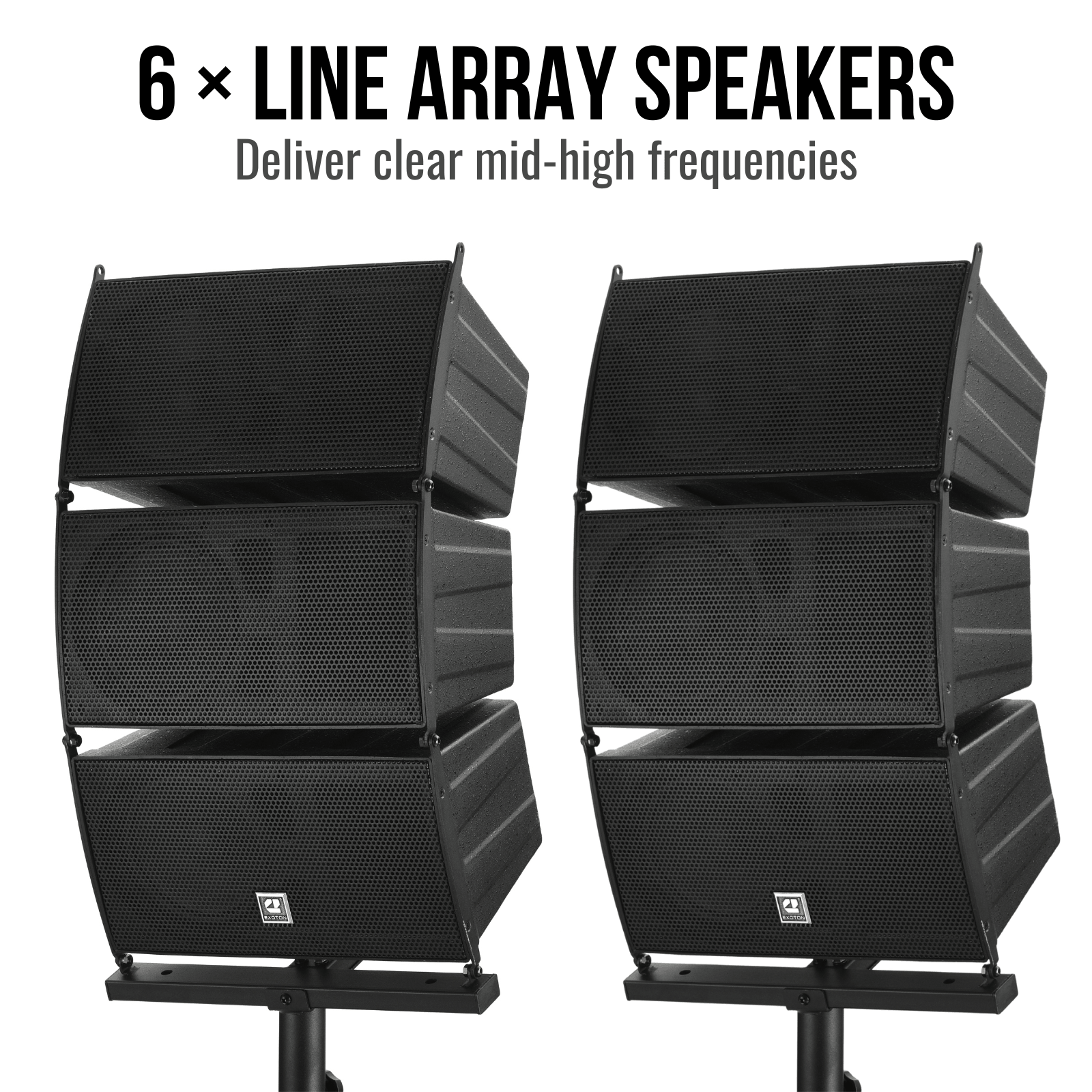

3-Way Line Array System: The LVP-18 combines dual 18-inch subwoofers with six adjustable array modules, each featuring a 6.5-inch midrange driver and a 1-inch compression driver. Its true 3-way design delivers balanced full-range sound for indoor events of approximately 100–130 people. With multi-angle adjustable splay for precise angle adjustment, it delivers flexible coverage control and balanced full-range sound for various applications.

Precision DSP Tuning: Equipped with a built-in DSP, this line array PA speaker system combines a 5-band EQ, selectable 45 Hz/63 Hz low-frequency tuning, and independent volume controls for accurate sound optimization. The LED display ensures simple operation and quick access to system settings.

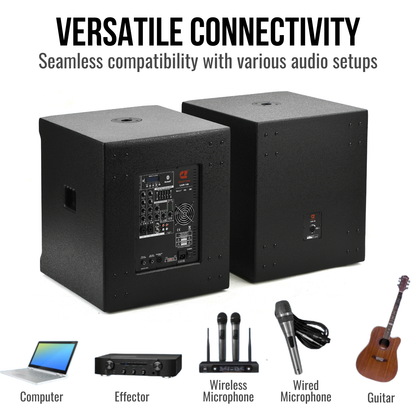

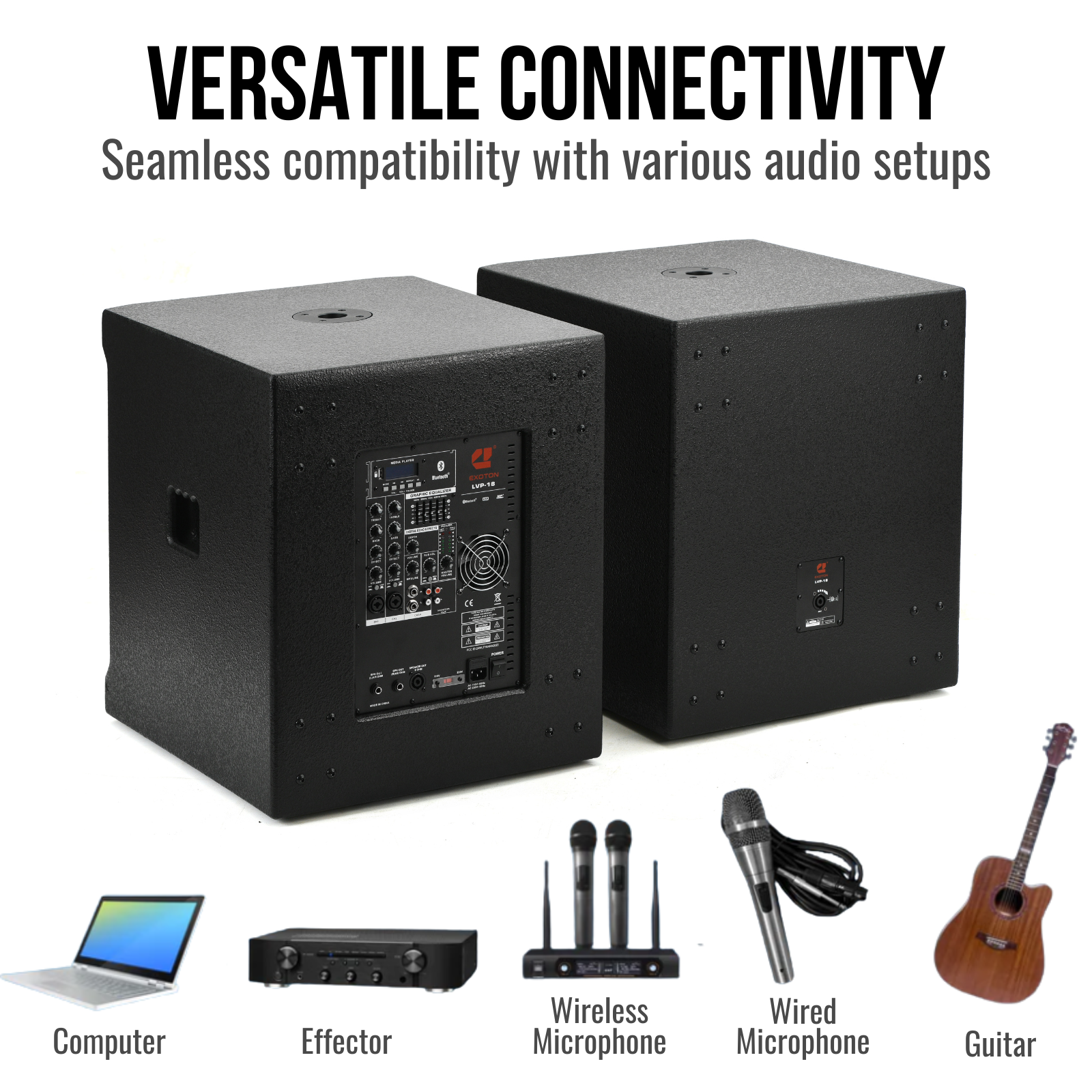

Professional-Grade Connectivity: The LVP-18 PA speaker system offers versatile connectivity, supporting Bluetooth wireless streaming, USB playback, XLR/1/4-inch combo inputs, TRS microphone inputs, and RCA line inputs, allowing seamless connection to a wide range of audio sources.

Built for Reliability: The LVP-18 features a multi-layer plywood cabinet with a durable polyurea coating to withstand demanding use. A low-noise cooling fan ensures efficient heat dissipation, helping maintain stable performance during extended operation.

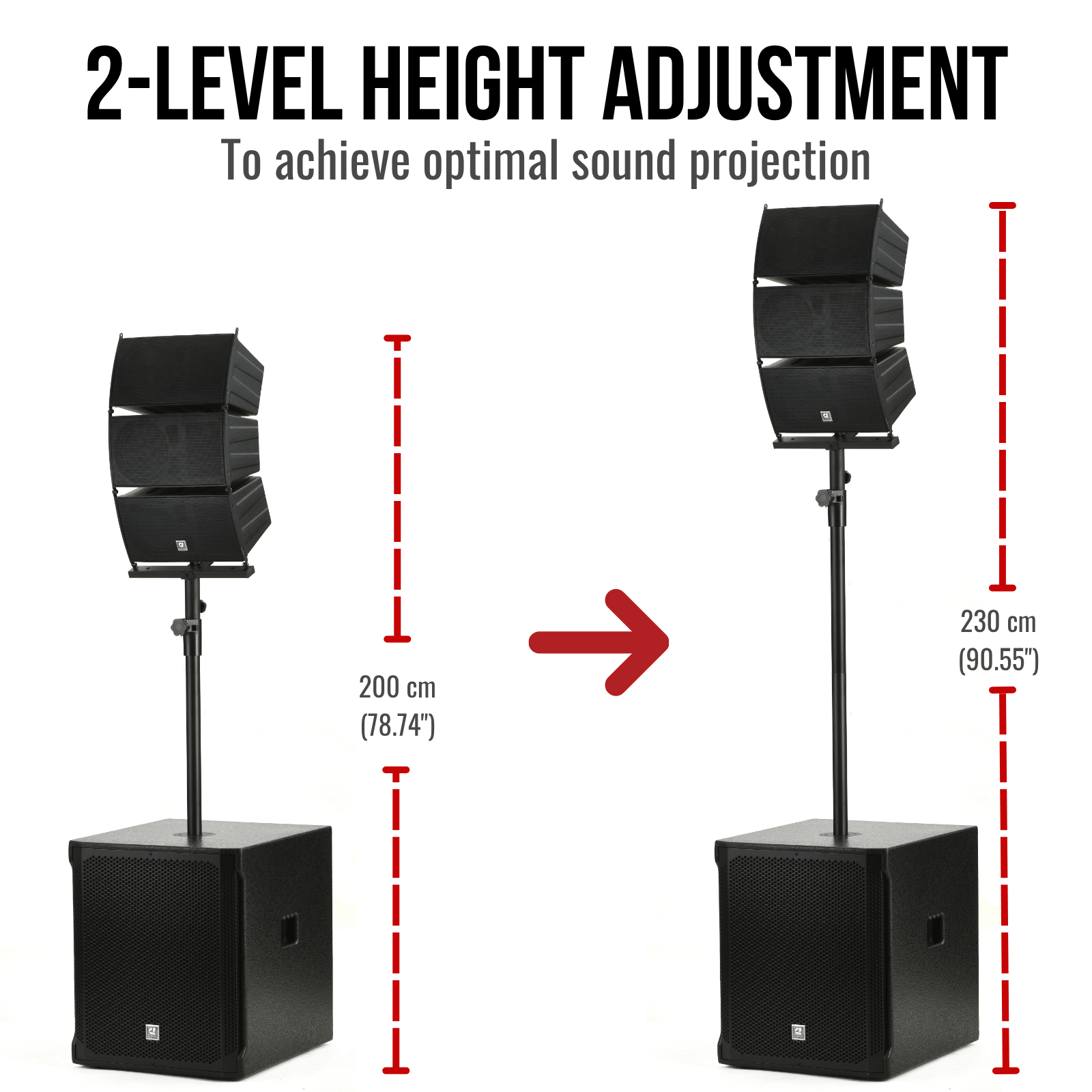

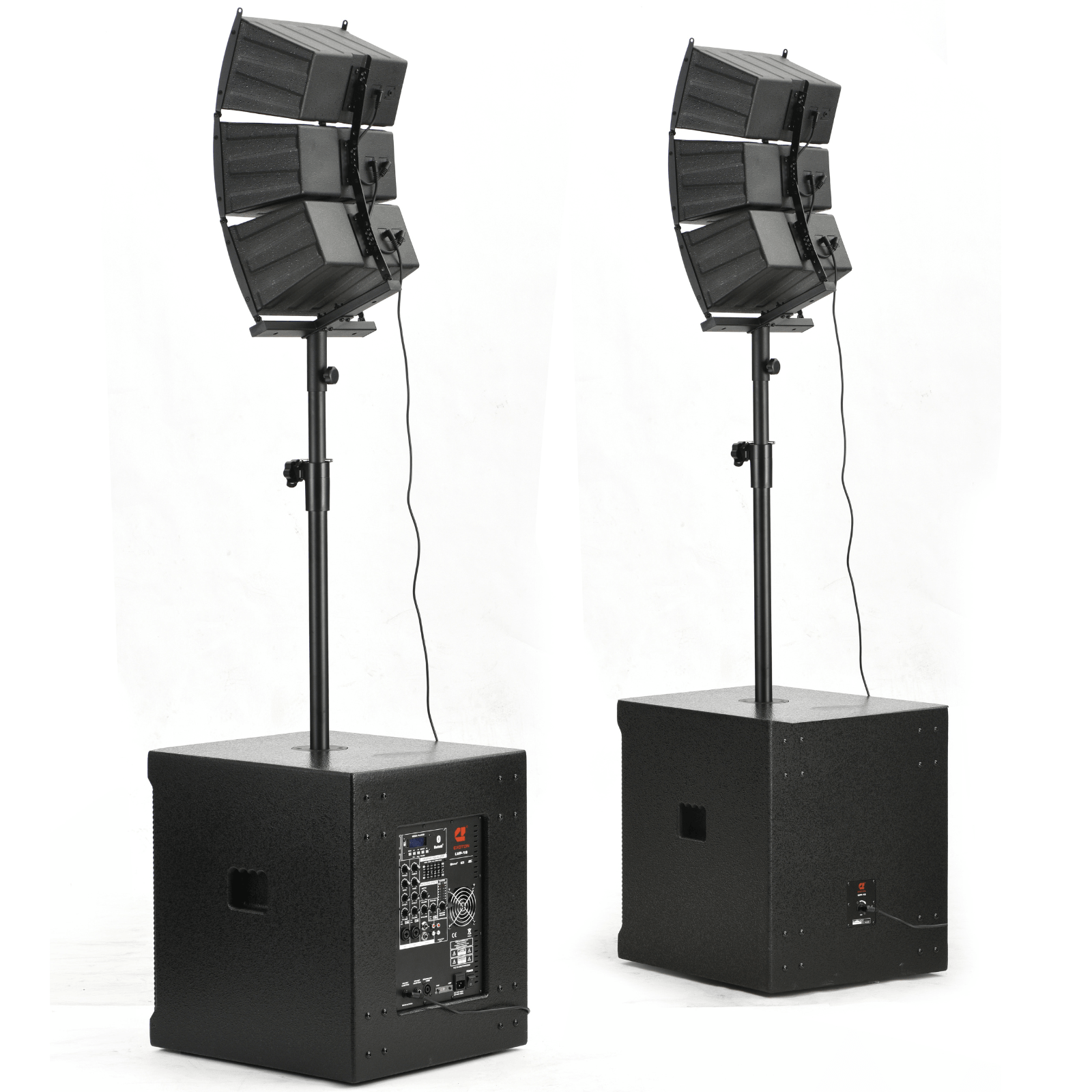

Portable Design: The modular line array design enables quick setup and flexible configuration. An adjustable speaker pole (78.74–90.55 in) provides flexible height positioning for different venues, while pre-drilled caster mounting points simplify transportation and deployment.

View full details

Key Features

  • 1400W Peak Power
  • 3-way Line Array Speaker
  • 2 × 18" Woofers
  • 6 × 6.5" Passive Line Array Speakers

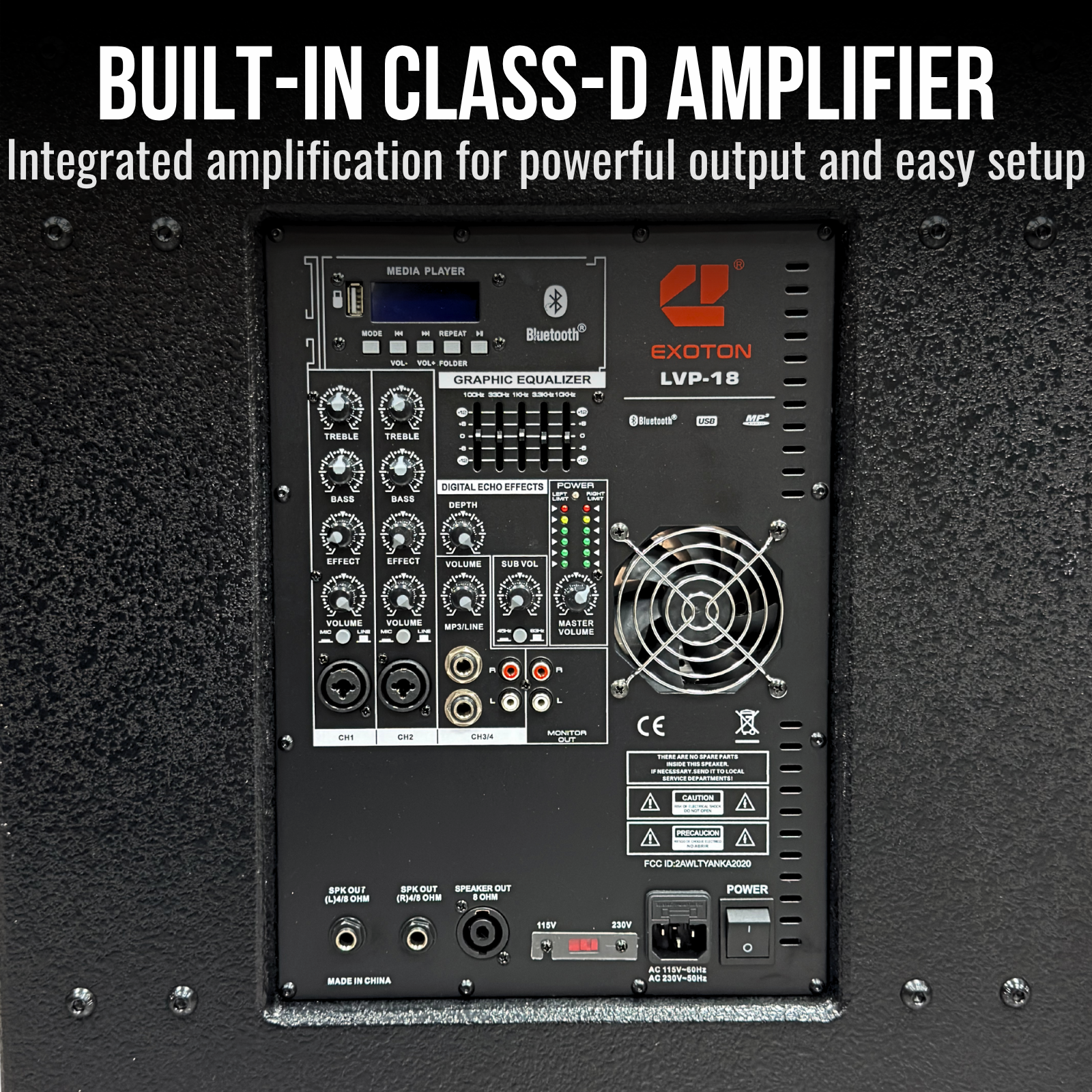

  • Built-In Class-D Amplifier
  • 5-Band EQ Control
  • LED Display Screen
  • Selectable 45/63 Hz LF Tuning
  • Digital Echo Effects
  • Bluetooth 5.0

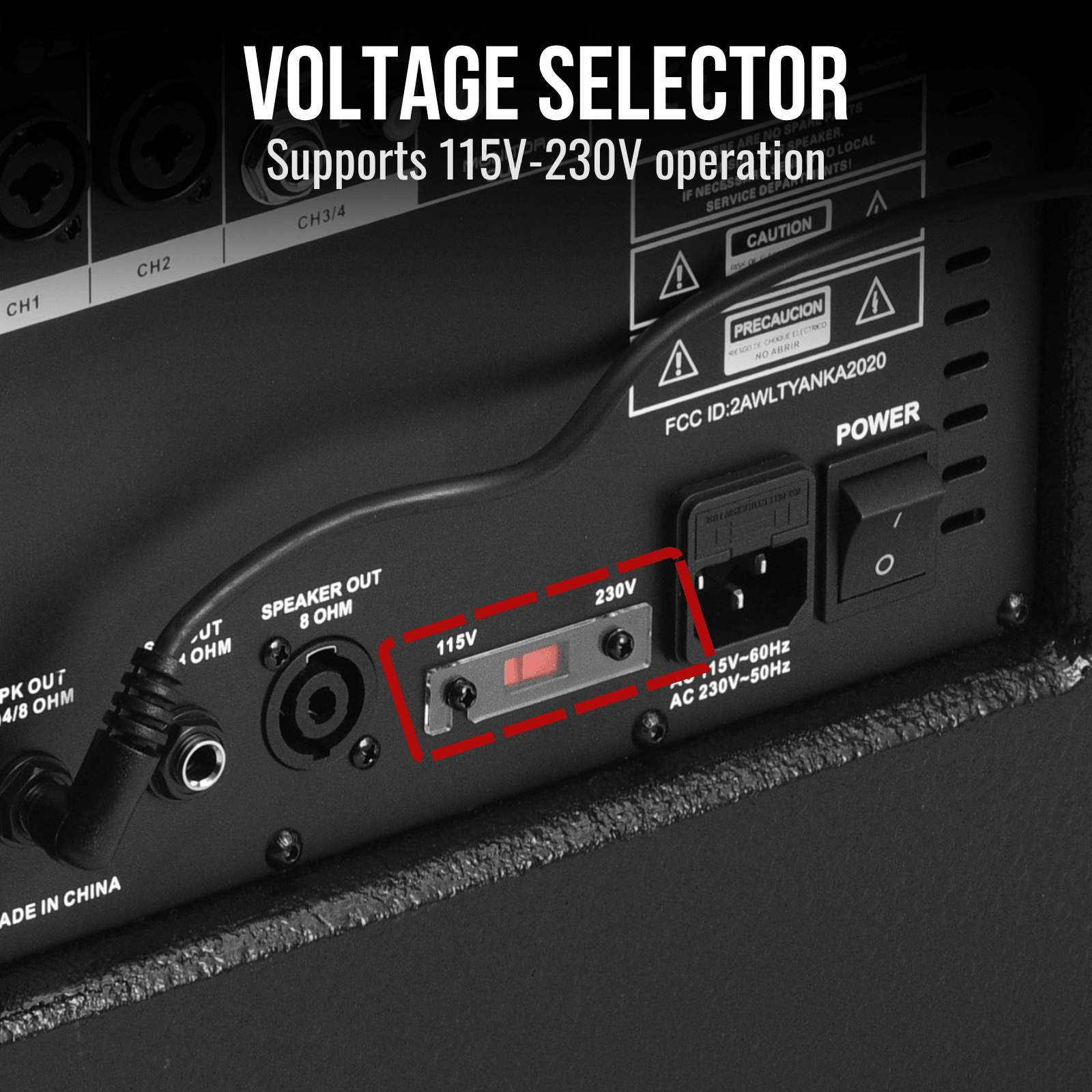

  • 115V/230V Voltage Selector
  • Mounting Points for Casters
  • Low-Noise Cooling Fan
  • Multi-layer Plywood Cabinet Design
  • Remote Control

Specifications

  • Peak Music Power Output (P.M.P.O.): 8000 Watts

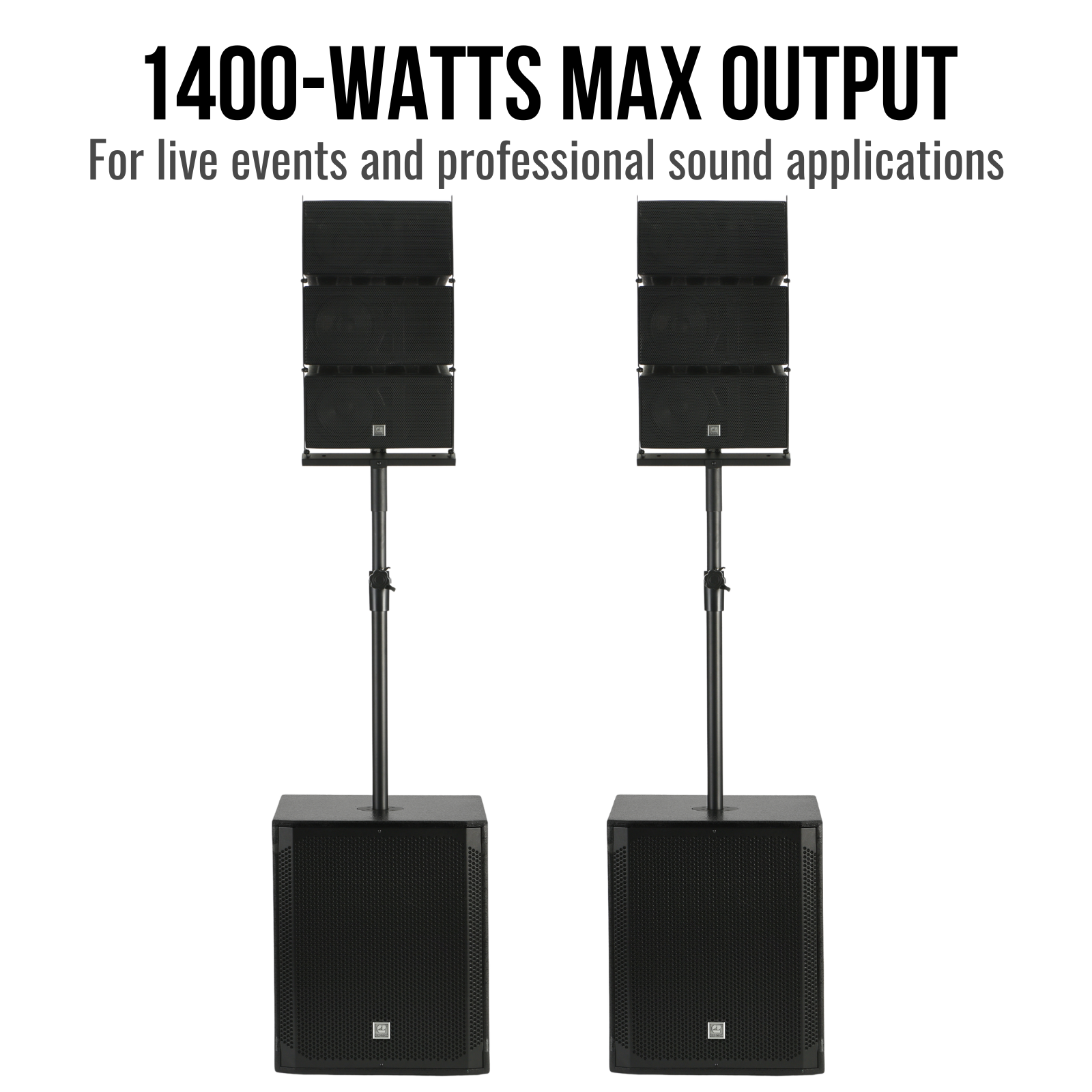

  • Power Rating (Peak): 1400 Watts
  • Power Rating (RMS): 700 Watts
  • LF Power Rating (RMS): 400 Watts
  • MF Power Rating (RMS): 150 Watts
  • HF Power Rating (RMS): 150 Watts
  • Frequency Response (-3 dB): 35 – 20 kHz
  • Sensitivity (1W/1M): 94 dB

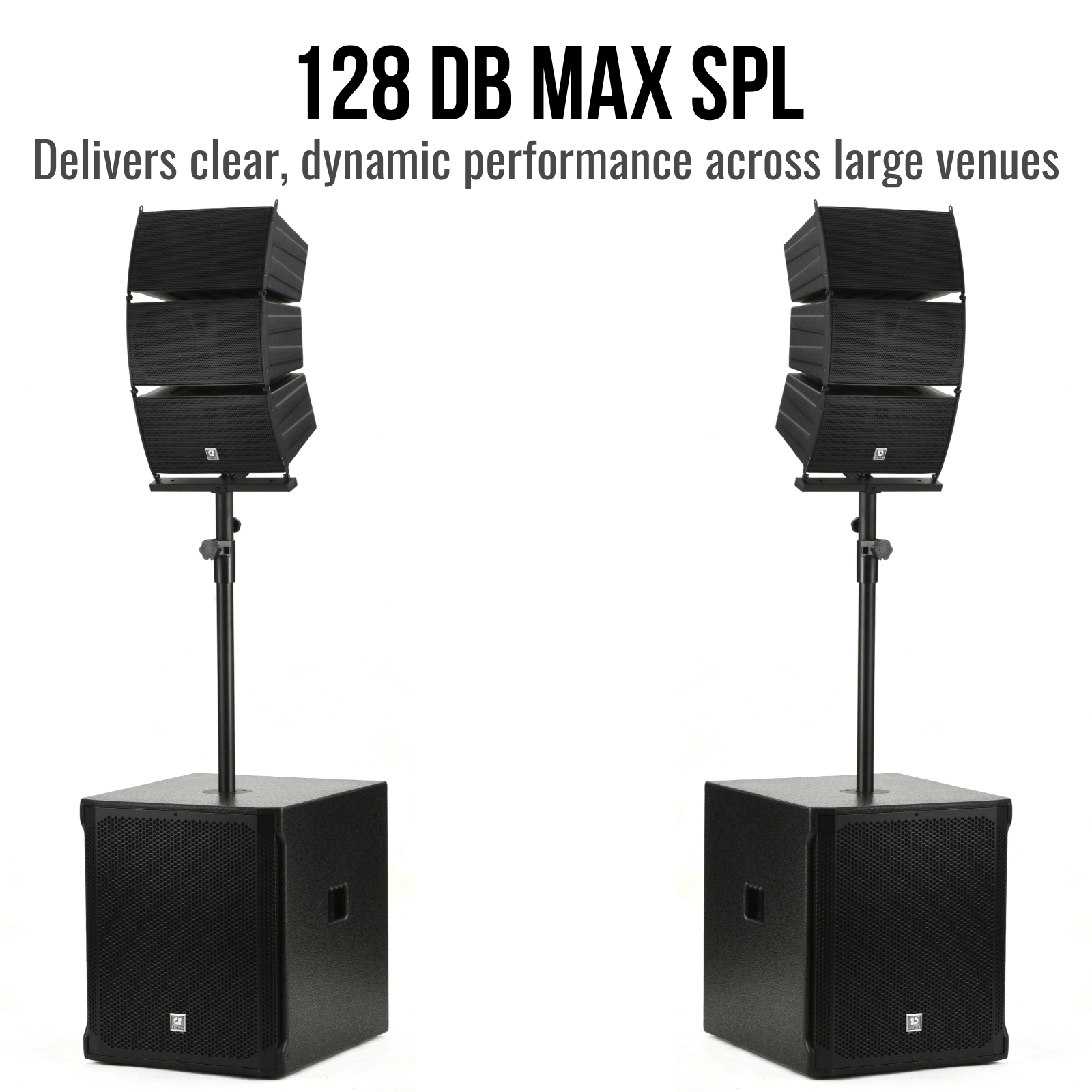

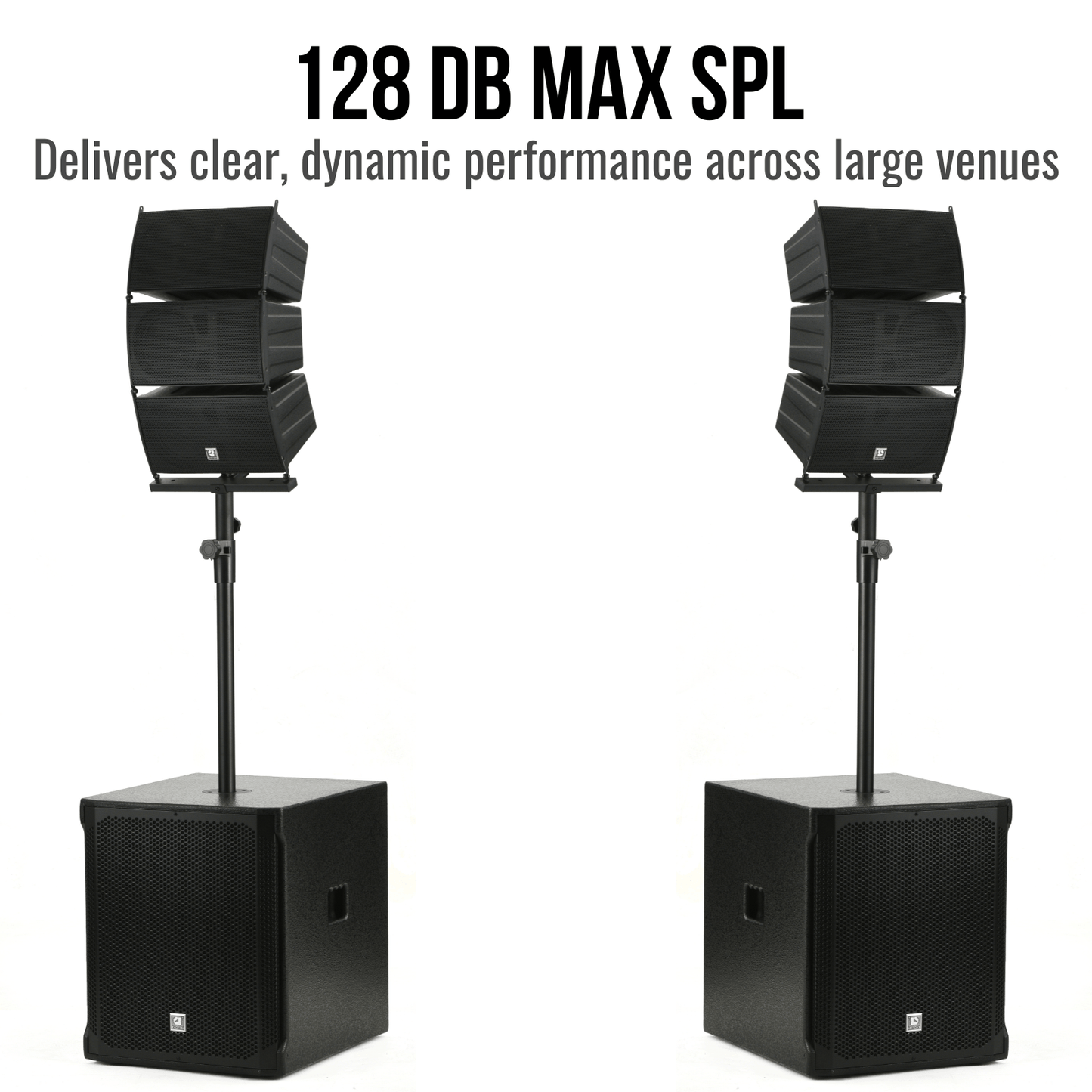

  • MAX SPL: 128 dB
  • Nominal Impedance: 8 Ohm
  • LF: 2 × 18" Woofers, 3" VC
  • MF: 6 × 6.5" Mid-High Drivers
  • HF: 6 × 1" VC Drivers

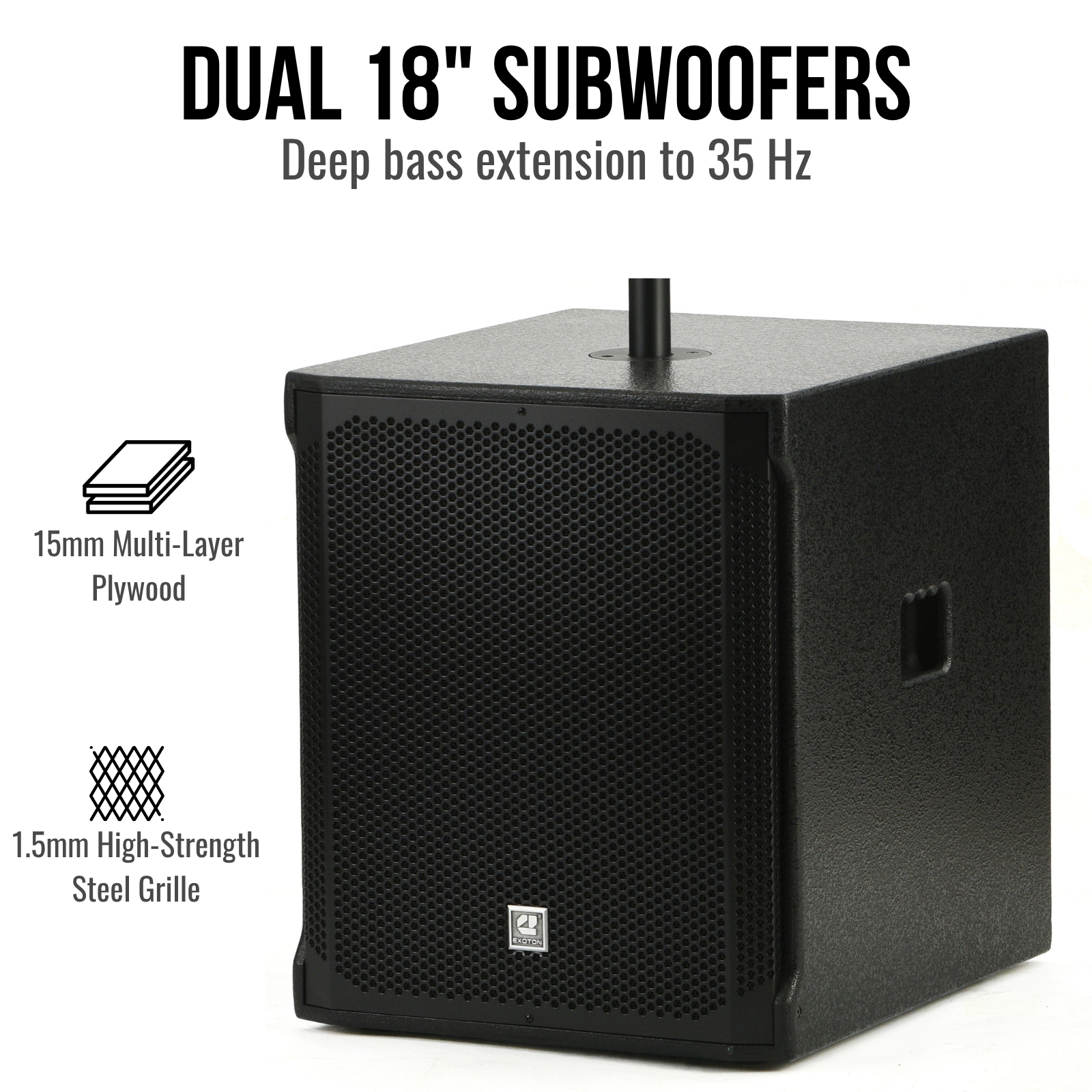

  • Cabinet Material: 15 mm Multi-layer Plywood
  • Grille Material: 1.5 mm Steel
  • Surface Finish: Polyurea Coating
  • System Height (Configurable): 78.74" / 90.55"

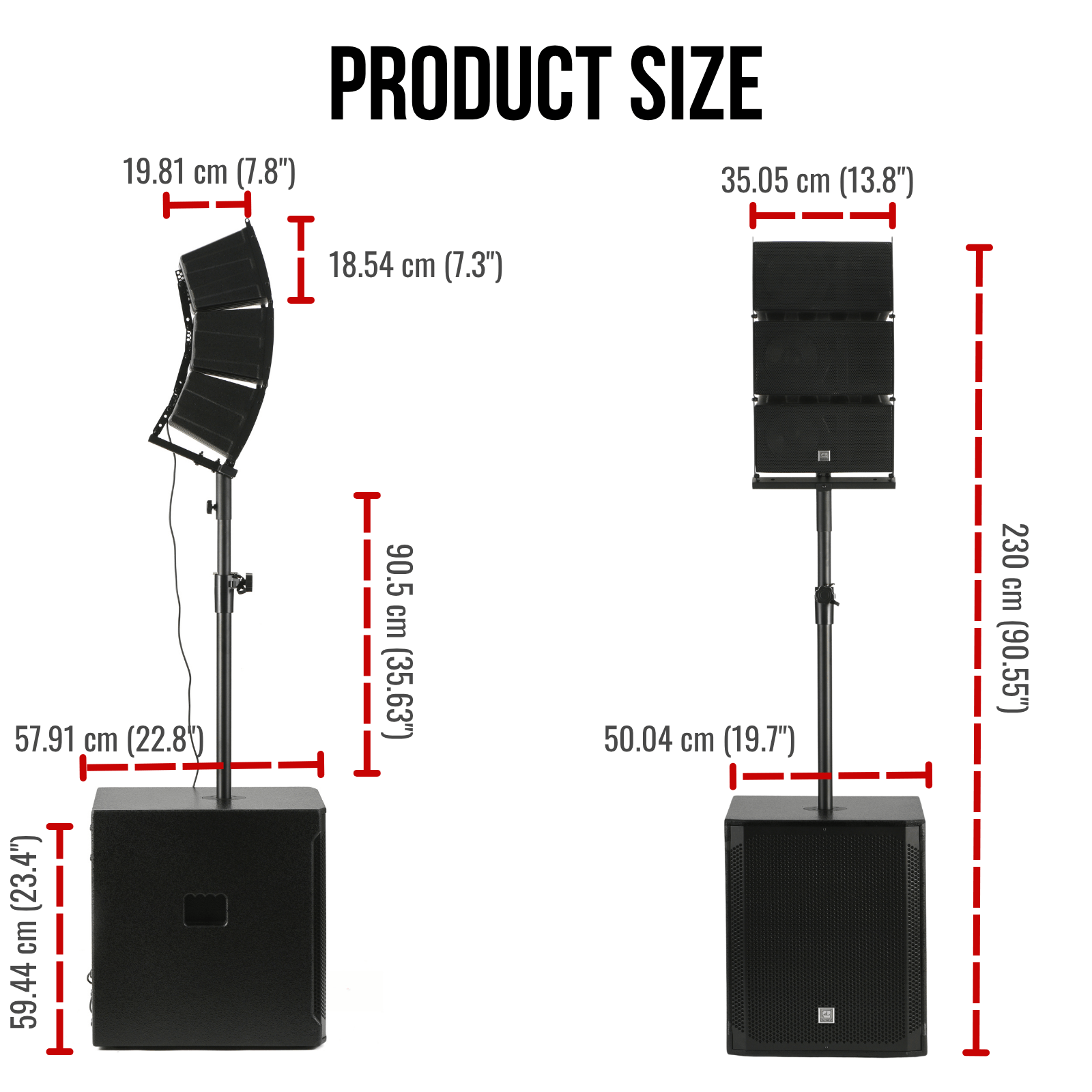

Dimensions (L × W × H):

  • Active Sub: 19.7 × 22.8 × 23.4 in
  • Passive Sub: 19.7 × 22.8 × 23.4 in

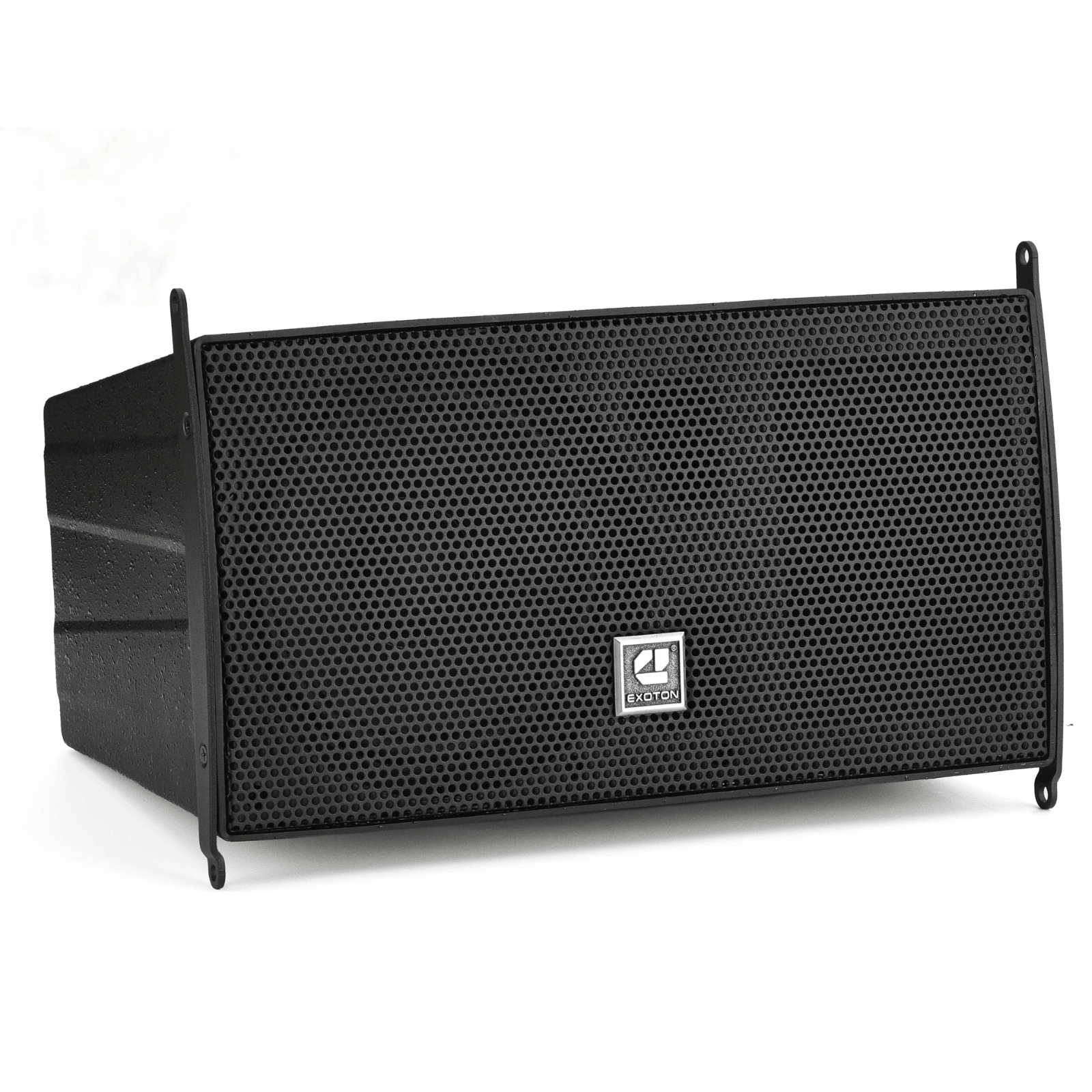

  • Single Line Array Speaker: 13.8 × 7.8 × 7.3 in

Shipping Dimensions (L × W × H):

  • Active Sub: 26.3 × 23.4 × 27.2 in
  • Passive Sub: 26.3 × 23.4 × 27.2 in
  • Line Array Speaker (6 pcs): 29.7 × 16.5 × 22.4 in

Net Weight:

  • Active Sub: 72.3 lbs
  • Passive Sub: 62.8 lbs
  • Line Array Speaker (6 pcs): 50.9 lbs

Gross Weight:

  • Active Sub: 86.4 lbs
  • Passive Sub: 76.7 lbs
  • Line Array Speaker (6 pcs): 66.4 lbs

Input & Output

Audio Input

  • Bluetooth
  • USB

Input Ports

  • 2 × XLR-1/4" Combo Inputs (Mic / Line)
  • 2 × 1/4” TRS Mic Inputs
  • 1 × RCA Line Input

Output Ports

  • 1 × RCA Line Output
  • 1 × Speakon Output
  • 2 × 1/4” TRS Outputs

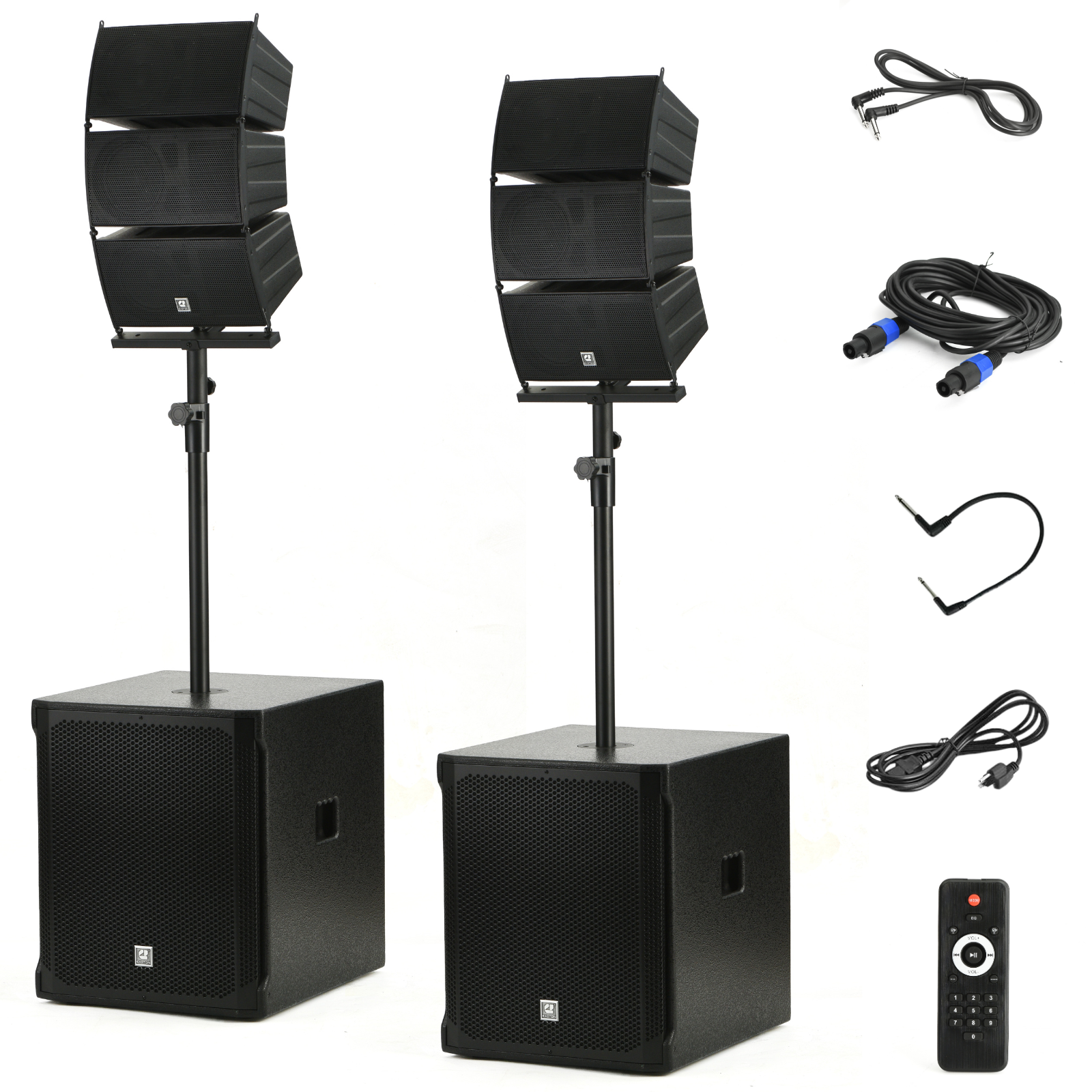

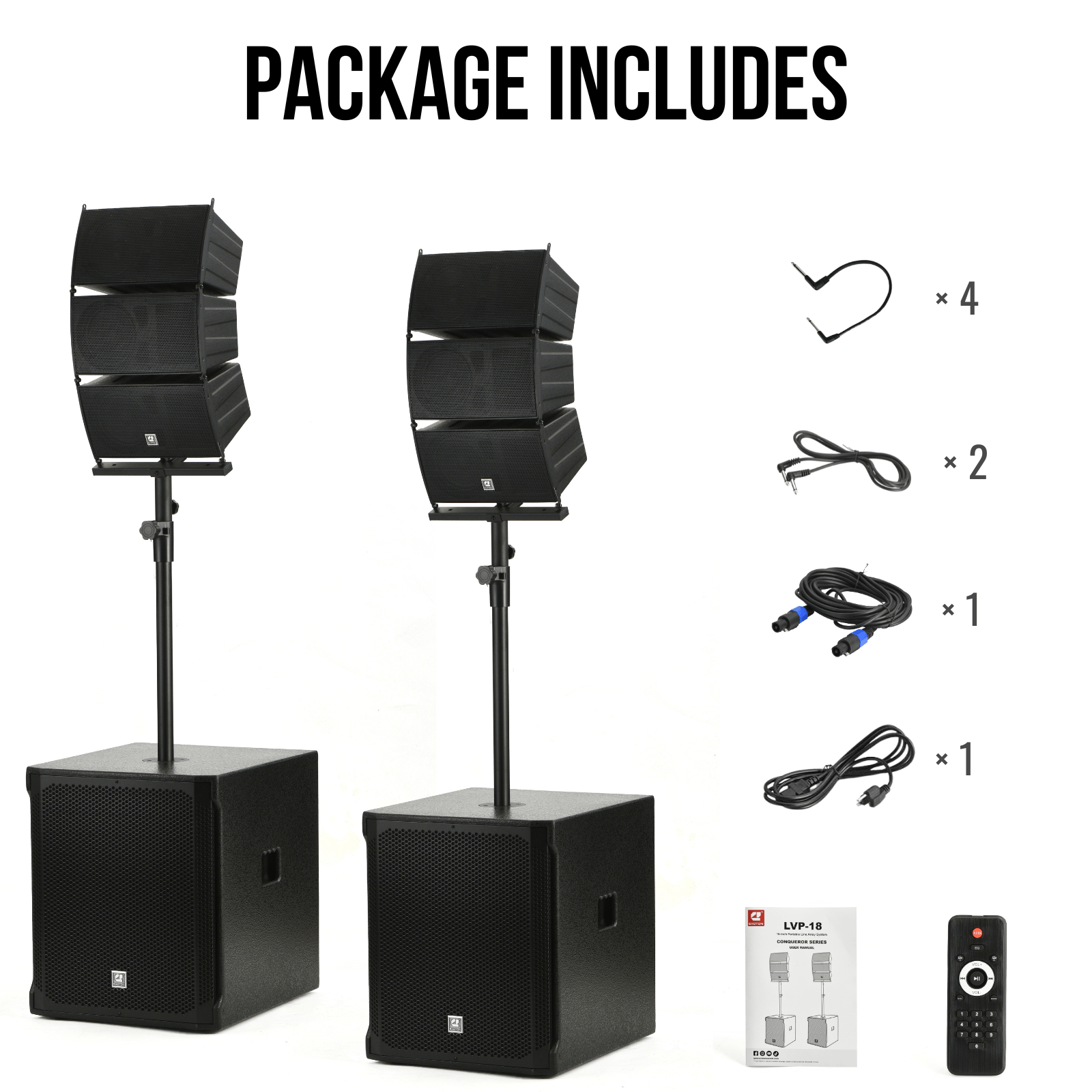

Packages Includes

The LVP-18 ships in 3 separate packages, which may arrive on different days.

Package 1

  • 18" Active Subwoofer × 1

Package 2

  • 18" Passive Subwoofer × 1

Package 3

  • Line Array Speakers × 6
  • M6 × 36 mm Screws × 8
  • M6 × 12 mm Screws × 38
  • Washers × 32
  • Hex Wrenches × 2
  • Speaker Pole Sets × 2
  • Speaker Cables (0.3 m) × 4
  • 6.35 mm Audio Cable (2 m) × 1
  • 6.35 mm Audio Cable (10 m) × 1
  • Speakon Cable (9 m) × 1
  • Power Cable (2.4 m) × 1
  • Remote Control × 1
  • User Manual x 1
