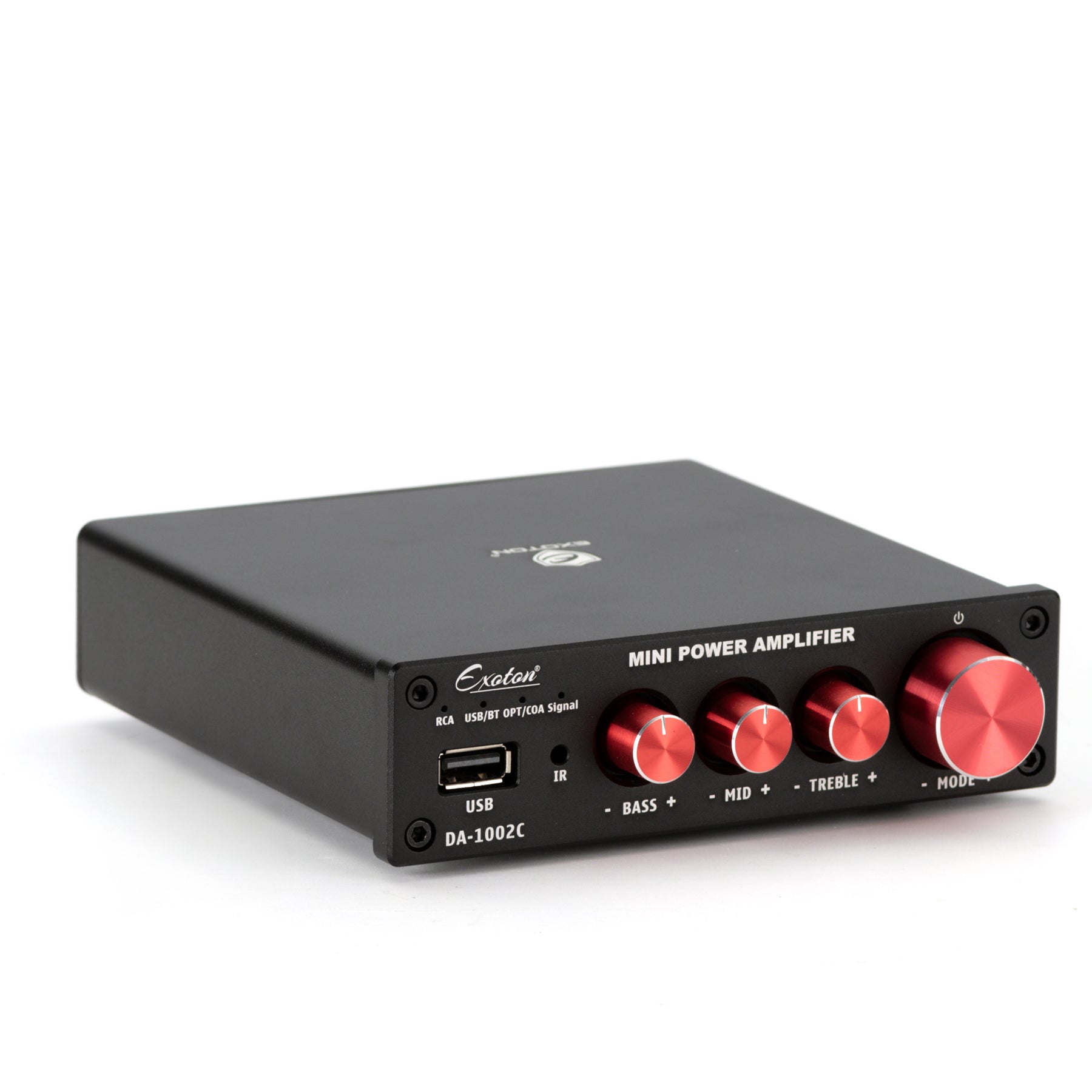

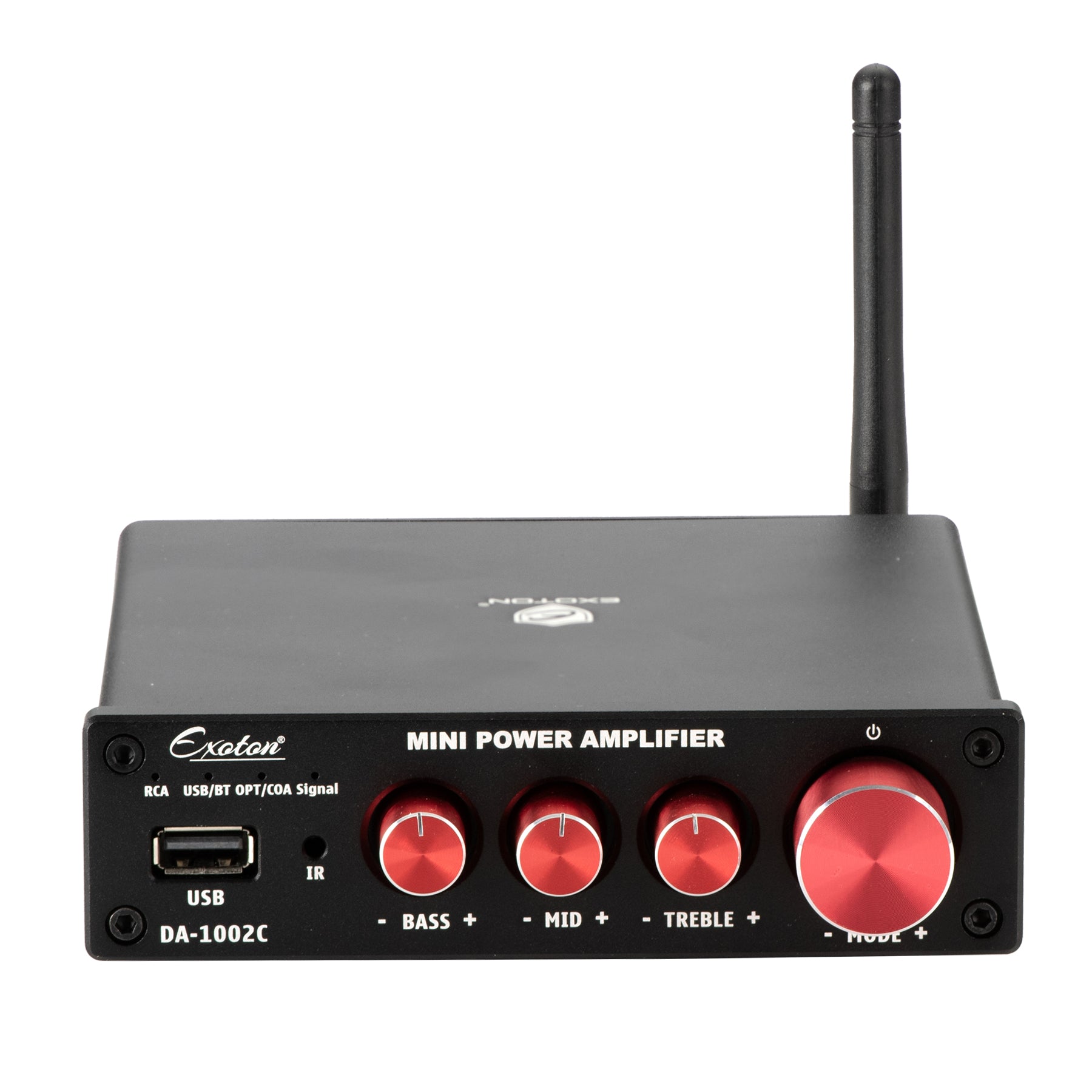

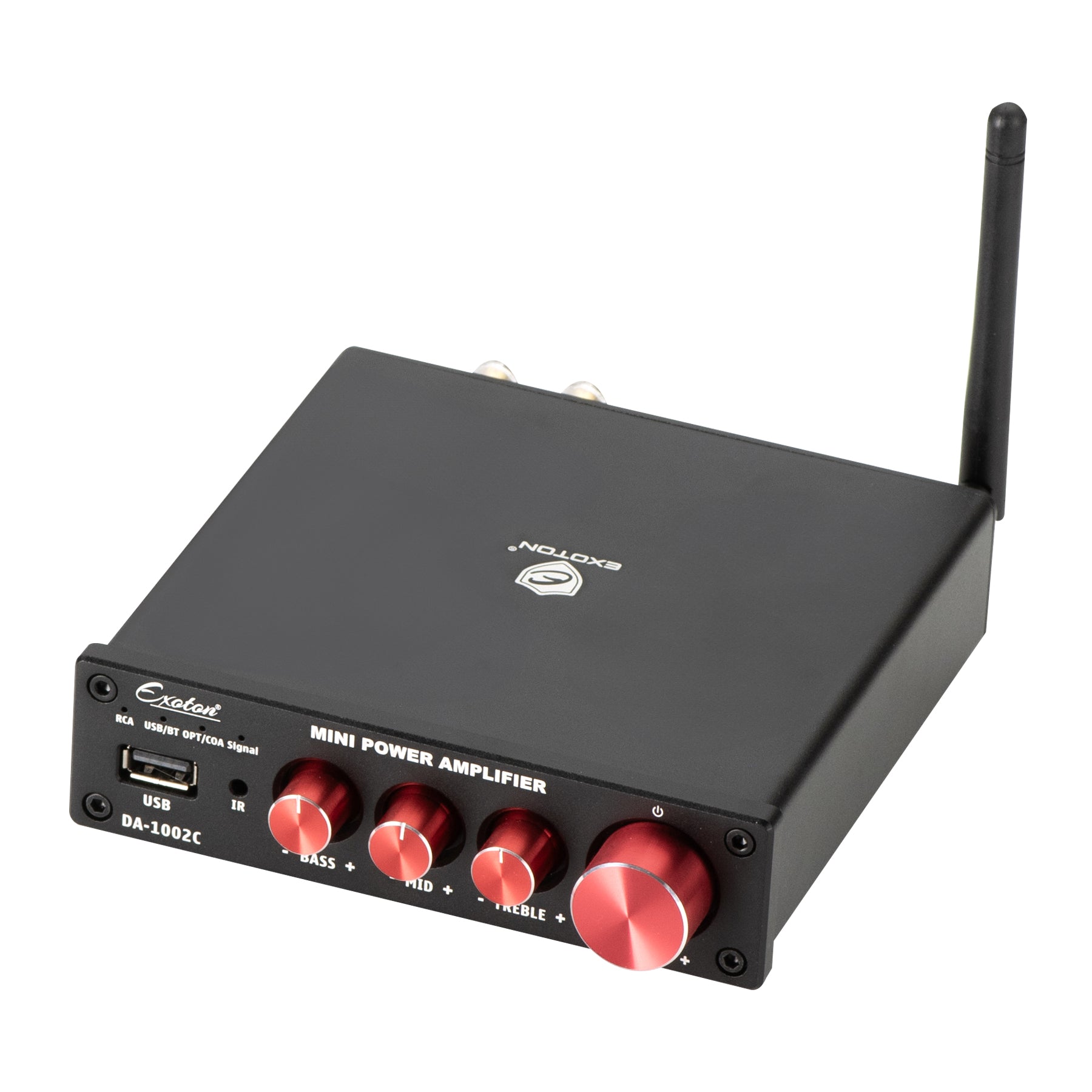

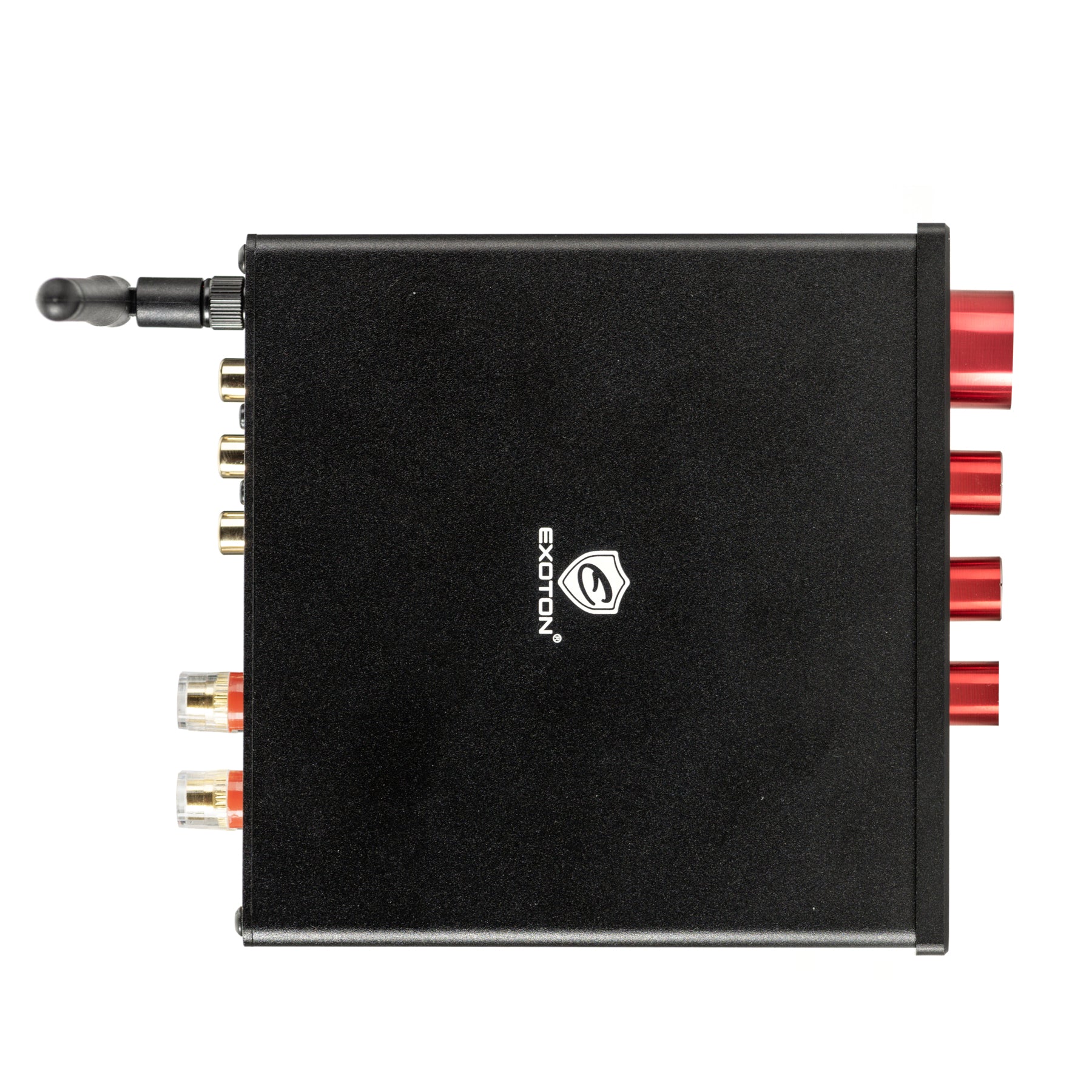

2 Channel 200W Bluetooth 5.0 Mini Class D Power Home Amplifier
2 Channel 200W Bluetooth 5.0 Mini Class D Power Home Amplifier
SKU:DA1002C
Great Powerful Sound Quality: Adopting Texas Instruments classic TPA3221 chip, delivering an impressive 100W per channel, the amplifier produces powerful and clear HiFi sound.
Bluetooth 5.0 Connectivity: The DA1002C amplifier offers a wireless robust connection range of up to 50 feet, streaming music stably and losslessly.

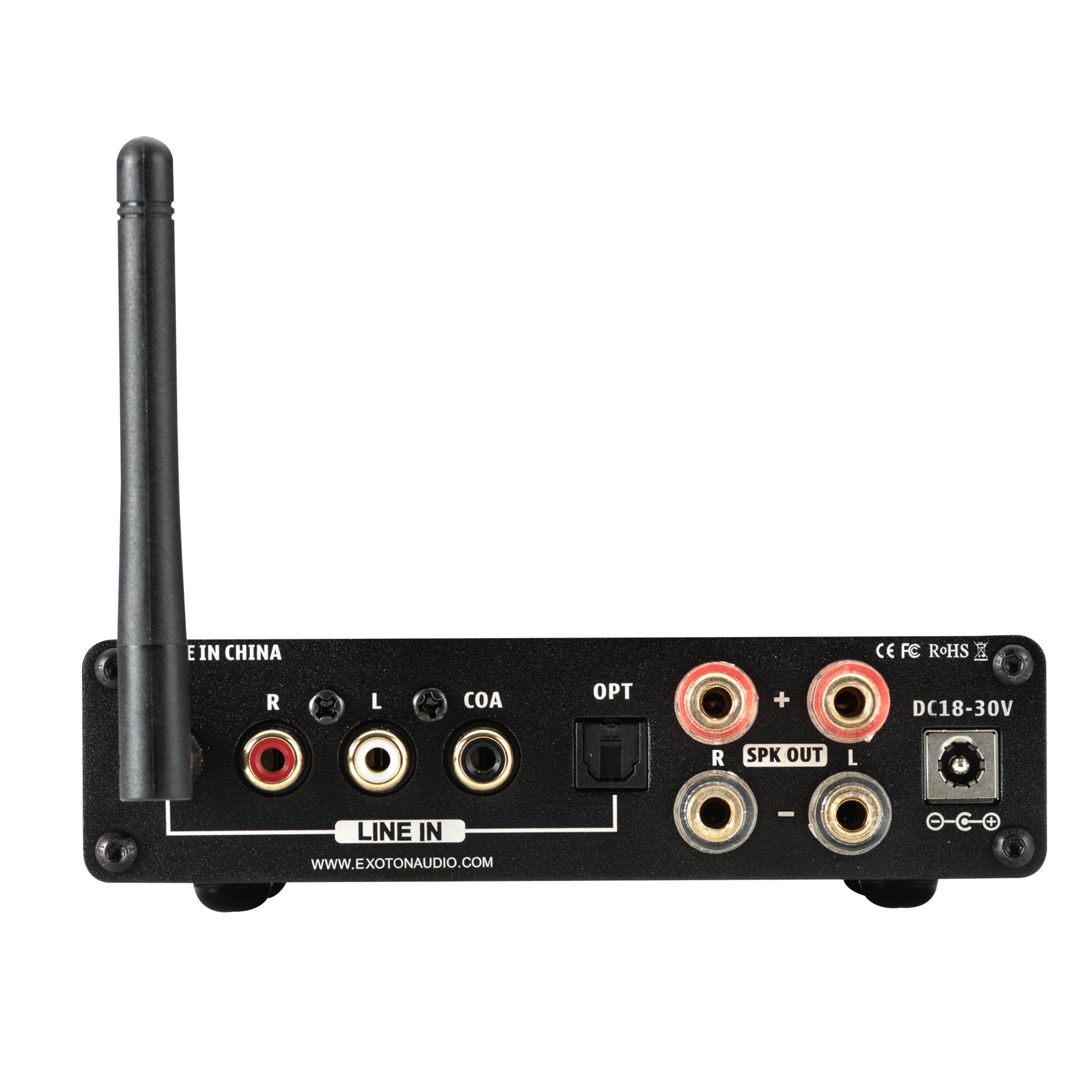

Easy To Use: The power amplifier offers both Bluetooth and RCA inputs, along with passive speaker outputs. This versatile amplifier enables you to build a high-quality 2.0 CH audio system, allowing seamless connections to your phone, computer, TV, tablet, and more.
Meet All Your Needs: DA1002C supports MP3/WMA/APE/FLAC/WAV music formats, suitable for most home passive speakers.
Share
Key Features
- Fully Integrated
- TPA3221 Chip
- Digital Audio Power
- Class D Amplifier Technology
- High-efficient 2 Channels
- Bluetooth 5.0
Specifications
- Maximum output: 100W X 2 (4Ω)
- Speaker impedance matching: 3 - 8Ω
- Working voltage: DC 18 - 30V
- Input sensitivity: 0.775V
- Frequency response: 20Hz - 20KHz
- THD: 0.08%
- SNR: ≥98dB
- Dimensions: 11.61 x 8.9 x 2.52 inches
- Weight: 2.73 Pounds
Connection
- Connect the required audio source to the corresponding input interface (when connecting Bluetooth, you need to switch the input channel to Bluetooth).
- Connect the passive speaker to the speaker interface (red +/ black -, R to the right speaker /L to the left speaker).
- Connect the DC power supply (the DC voltage must not be higher than 30V).
- Press the encoder knob to turn on the power supply and switch to the required input channel.
- Turn the knob clockwise to select the desired volume and high or low volume.

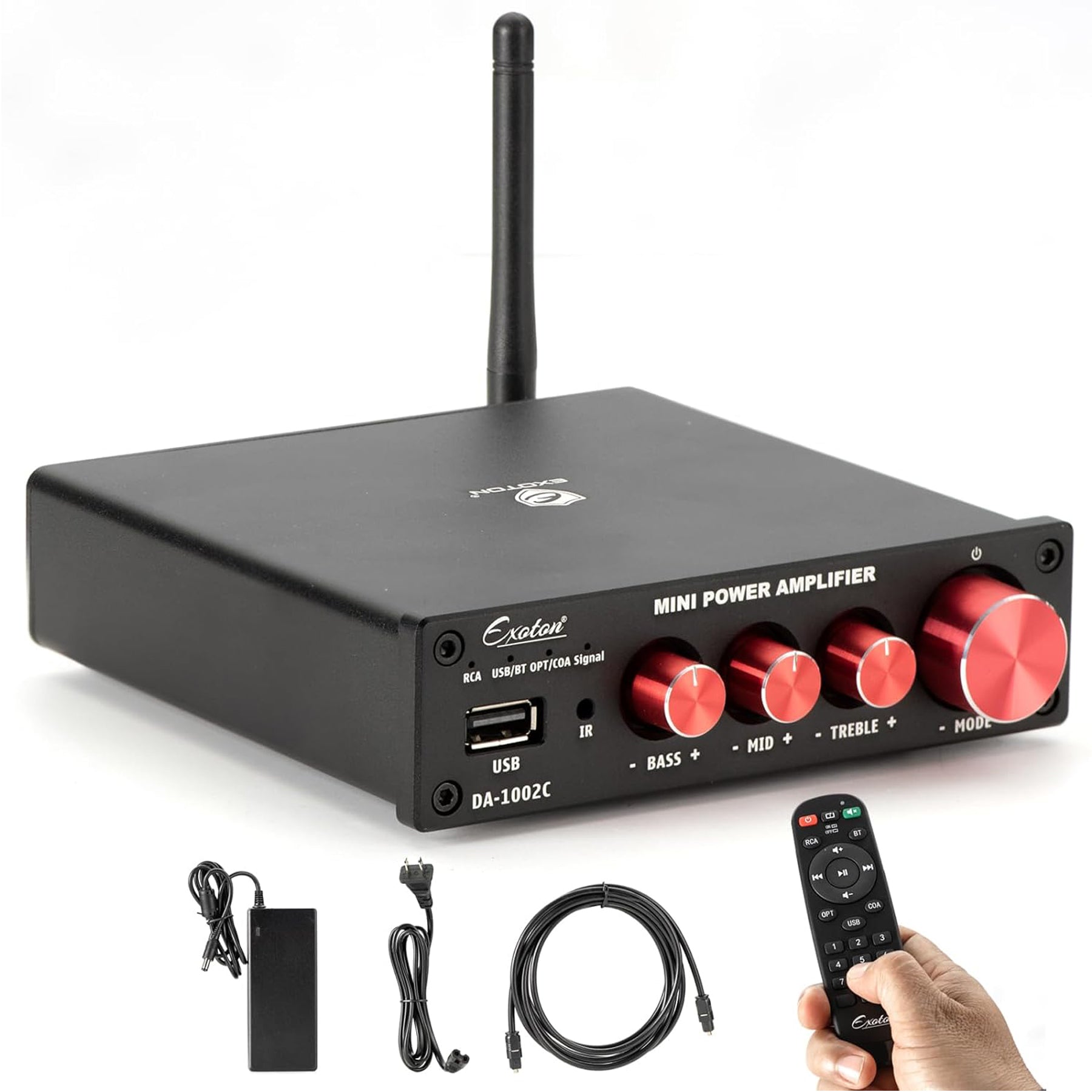

Packages Includes
- DA1002C Amplifier x 1
- Remote Control x 1
- AC Power Cord x 1
- 24V/4A Power Supply x 1
- Bluetooth Antenna x 1
- User Manual x 1
Owner Manual

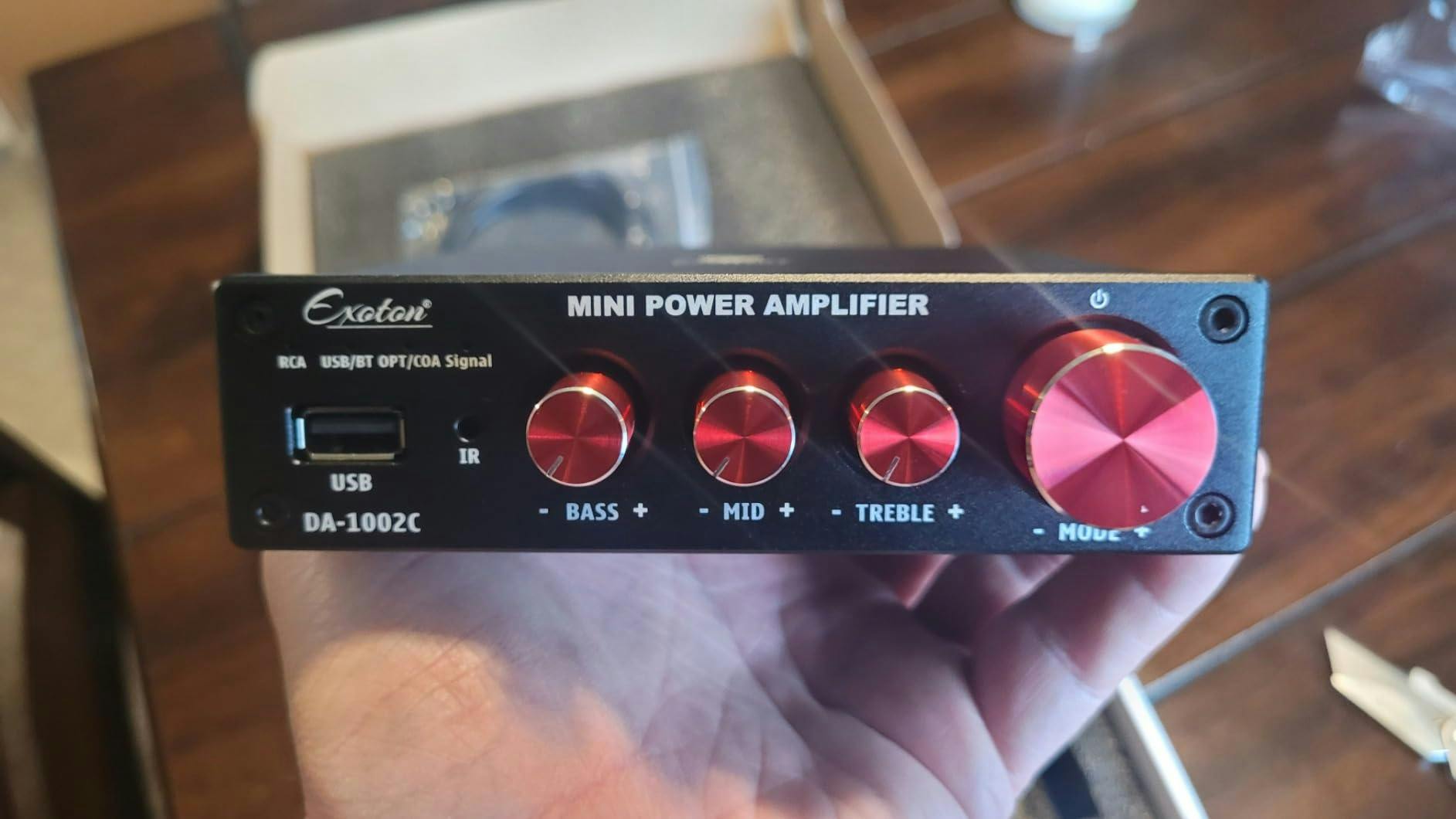

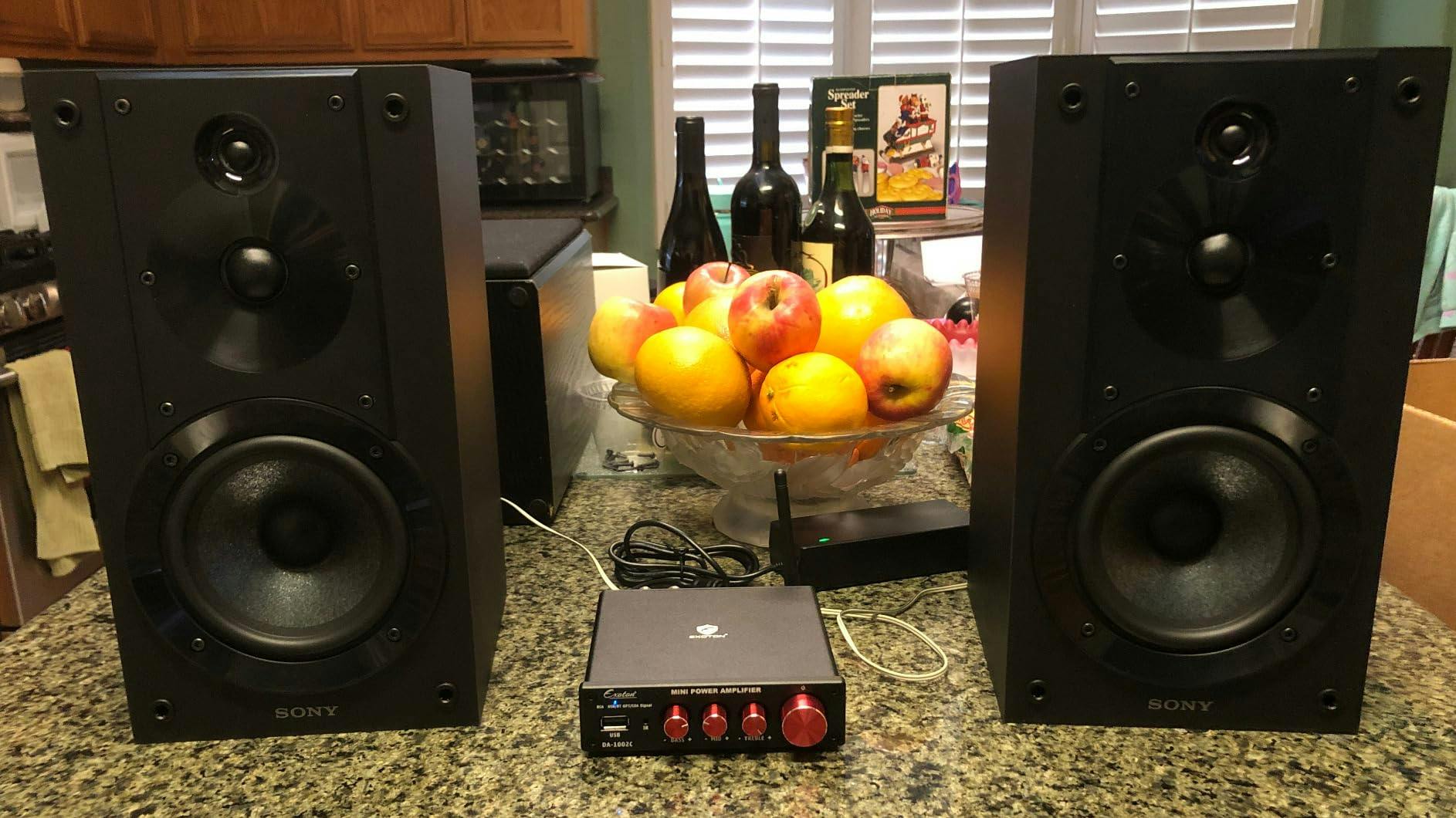

Previously, I had a large stereo receiver speaker. But that doesn't fit my lifestyle anymore. With this device, I can play music on my phone with some decent speakers and the Bluetooth device in the middle connects the two together. It has a few other inputs such as RF signal, RCA audio input, coaxial input and optical input. It also comes with a fiber optic cable, remote control and Bluetooth antenna. This would be an awesome compact music system that delivers 100 watts of power to the speakers.
In my opinion, it's only good for near-field listening with high-efficiency speakers. However, it is a nice, clean speaker with a nice remote and tons of input options.
The midrange adjustment actually works well and adds a sense of contour to the sound. I'm not sure how long it will last, but I'll update it if necessary.
Sound is very good! No hiss or buzz, strong bass and clean treble even when turned up to maximum volume. I'm happy to report that there is no crackling or thumping when powering on or off. For a simple amplifier, this is a great choice.
