6 Channel Mixing Console Bluetooth Audio Mixer
6 Channel Mixing Console Bluetooth Audio Mixer
SKU:EMX-6
The EMX-6 is a 6-channel audio mixer that supports inputs from a variety of audio sources (USB/Bluetooth/MP3) for musicians and content creators who want studio-quality performance right on their desktops. Equipped with an equalizer on all mono channels, it gives you full control over the tonal balance of your mixes. 48V phantom power is designed to provide stable power to condenser microphones, ensuring pure sound quality and clarity. The built-in Bluetooth function lets you easily connect to other devices for quick audio playback.
The EMX-6 mixer is not only suitable for live performance but also has powerful recording and monitoring functions. Thanks to the PFL (Pre-Fader Monitoring) and AFL (Post-Fader Monitoring) modes, you can monitor the audio signal of each channel in real-time to ensure perfect sound quality during the recording process. Deliver clean and professional mixes with the EXOTON EMX-6 mixing console!
Couldn't load pickup availability
Share
Key Features
- DJ & Studio Console Mixer System
- Multi 6-Channel Audio Source Mixing
- 99 DSP Effects
- USB Interface
- Headphone Output
- Main Volume Fader
- Sound Record Ability
- Real-time Monitoring
- Bluetooth Connectivity
- 48-volt Phantom Power
- Reverb knob Adjustment
- Direct-to-Computer Connect
- MP3 Digital Audio File Compatibility
- Connect & Stream Audio from External Devices
Specifications
- Maximum Input Level: MlC+10dBu / Line +22dBu
- Maximum Output Level: XLR +22dBu / TRS +20dBu
- Master Meters: 6 segment -20dB to peak!
- Channel Meters: 1 LED signalindication
- Frequency response: 20Hz to 22kHz ± 1dB
- CMRR(MIC1kHz): >75dB
- THD+N: <0.05%(Channel to mix out)
- Crosstalk(at 1kHz: Fader
shutoff): >80dB - Noise(rms 22Hz to 22kHz): EIN -122dBu /Residual output noise < -86dBu; L/R main mix noise < -72dBu;
- Mono Channel: XLR balanced, pin2 hot/pin3
cold, 2K ohm, Sensitivity -60 to +10dBu, phantom +48V; TRS balanced, tip
hot/ring cold, 10K ohm, Sensitivity -20 to +20dBu - MONO Channel EQ: HF, shelving, +/-15dB, 12kHZ;MF, peak/dip, +/-15dB, 2.5kHz; LF, shelving, +/-15dB, 80Hz
- Stereo Channel-1: TRS unbalanced, tip hot, 20K
ohm, Sensitivity -20 to +20dBu - Stereo Channel-1 EQ: HF,shelving, +/-15dB, 12KHz; MF,peak/dip, +/-15dB, 2.5kHz; LF, shelving, +/-15dB, 80Hz
- Stereo Channel-2/3: 6.35mm TRS unbalanced, tip hot, 10K ohm, Sensitivity -20 to +14dBu; 3.5mm TRRS unbalanced, tip/L, ring1/R, ring2/GND, sleeve/output, 10K ohm, Sensitivity -20 to +14dBu
- DSP Audio Effects Processor: 99mode/24bit/48KHZ, LED display
- MP3 Player/Recorder: Audio decoding: MP3/WAV/APE/FLAC; LED display; USB 1.1 audio interface
- Bluetooth: Compliant with Bluetooth V5.1+BR+EDR+BLE specification
- Max Input Power: DC 5V/2A 10watts
- Dimension: 10.63 x 10.24 x 3.07 inches
- Weight: 3.64 pounds
Input & Output
- Bluetooth
- USB
- MP3
Packages Includes
- 6-Channel Audio Mixer x 1
- Power Cord x 1
- User Manual x 1
Owner Manual
Makes my Exoton s-1503 sound that much richer and bold...and when I use it at my daily bar gig, it adds a crisp signal for highs/mids and bass..making me stand out compared to other djs at this venue...shout out to Exoton for stepping up...salute!!

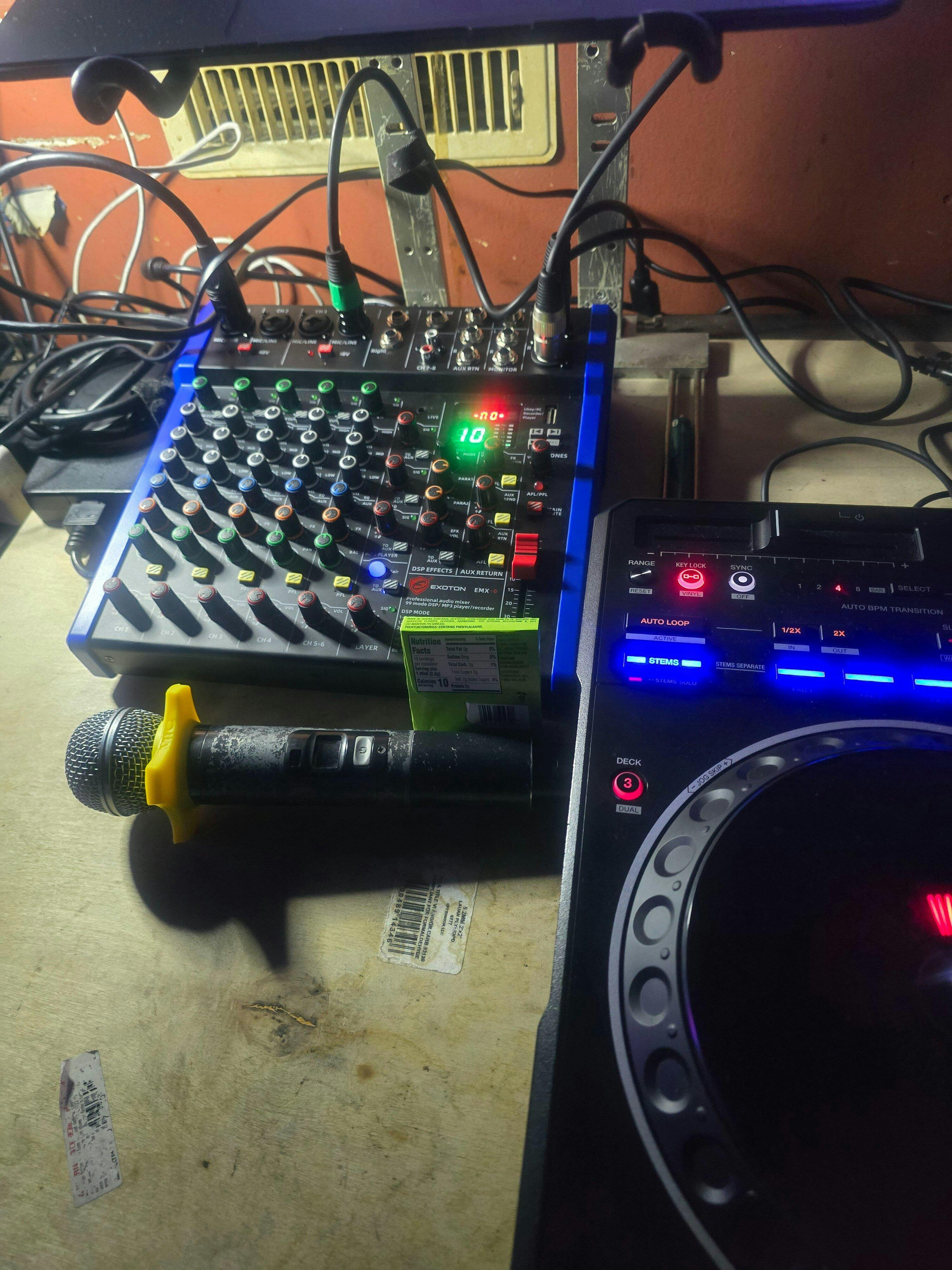

Wow! Just got this EXOTON EMX-6 mixer yesterday and have of course just had hours to play with it. Sturdy built. Nice compact size for all that it offers. Clear Clean mixer boosted sound going Main Out into my Amp. Mega onboard EFXs (I have my choice ones already). Bluetooth with my android phone works perfect. I have not tested all of the features yet but all that I have tested works fine and I emphasize - CLEAR & CLEAN going MAIN OUT from this mixer. XLR Mic sounds pre amped with clean output. Well worth the price. I may should do a review later after I kick the tires more LIVE. Needless to say so far I love this unit. Thanks EXOTON.
Ive been gigging with this mixer for a week, and Im blown away by how much it can do for its size. The sound quality is clean and clear, and the ability to connect via Bluetooth is a big plus when playing backing tracks.
I use the EMX-6 for both recording and live sound, and it works flawlessly in both settings. The PFL feature is handy for monitoring channels during recording sessions. Setup was simple, and I love the Bluetooth connectivity for quick streaming. I do wish it had a few built-in effects, but overall its a solid mixer.
This mixer has been a game changer for my home studio setup. Its compact, but offers everything I need from EQ to 48V phantom power for my condenser mics. The Bluetooth feature makes it easy to stream reference tracks. Great value for money!
